Special-Purpose Solid Carbide End Mills

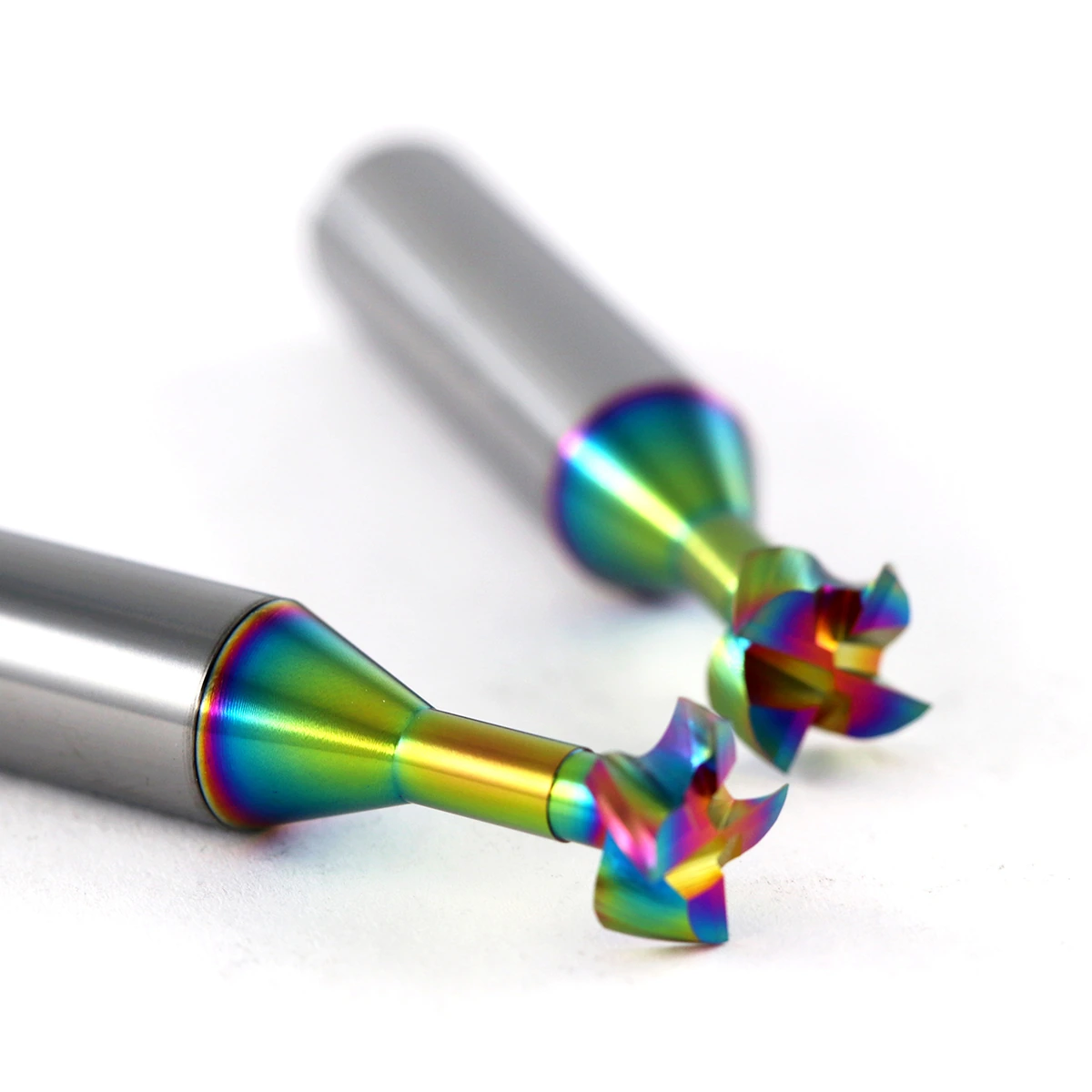

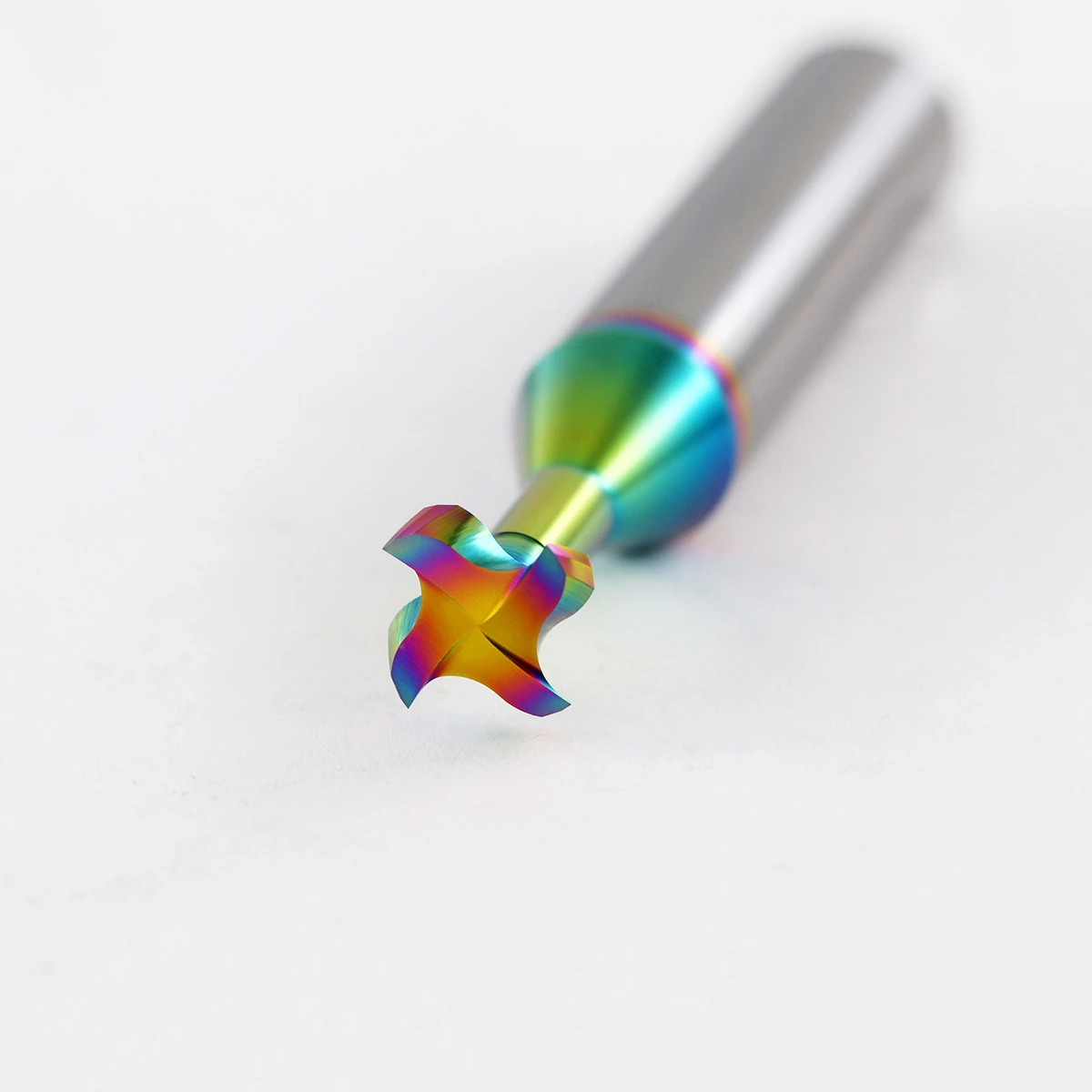

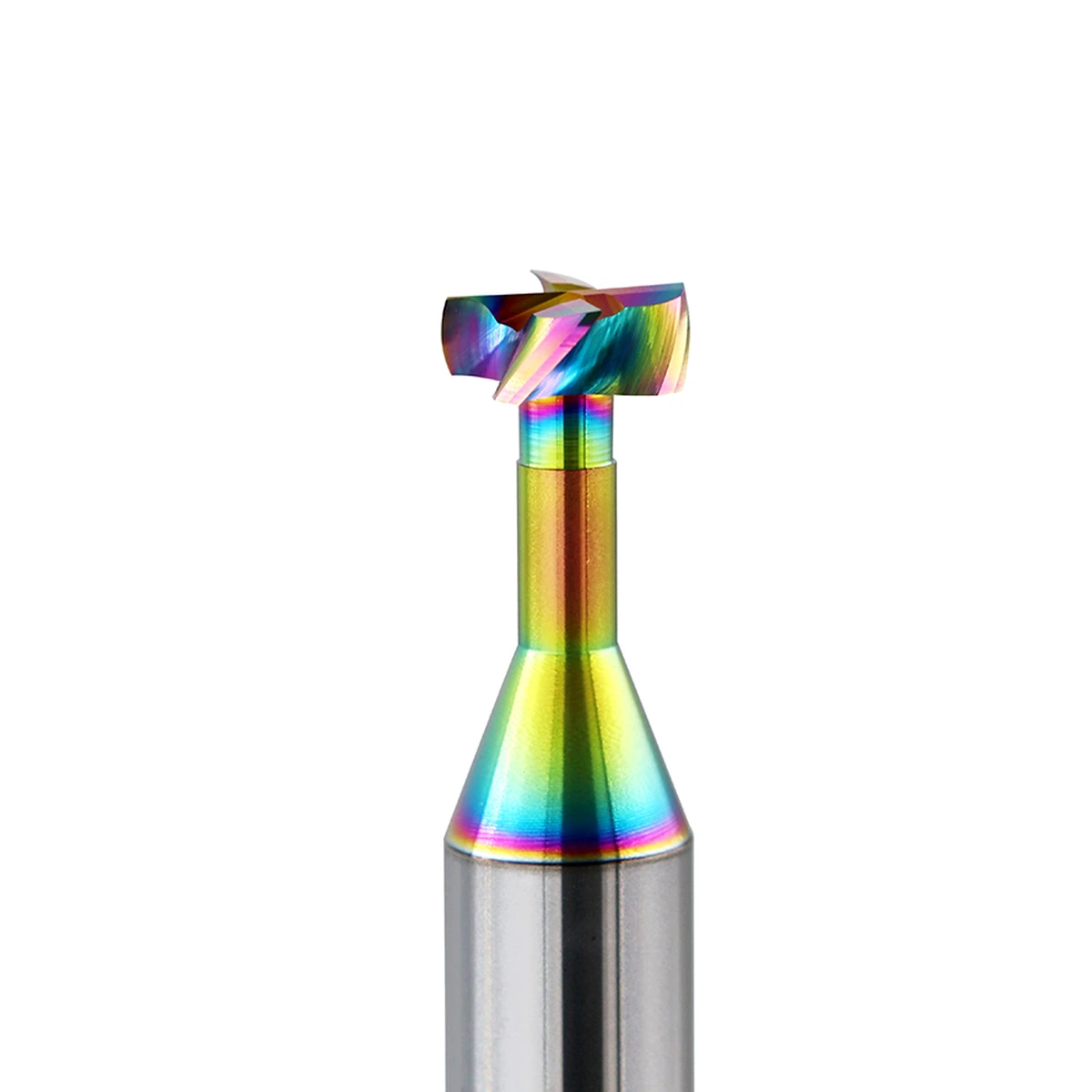

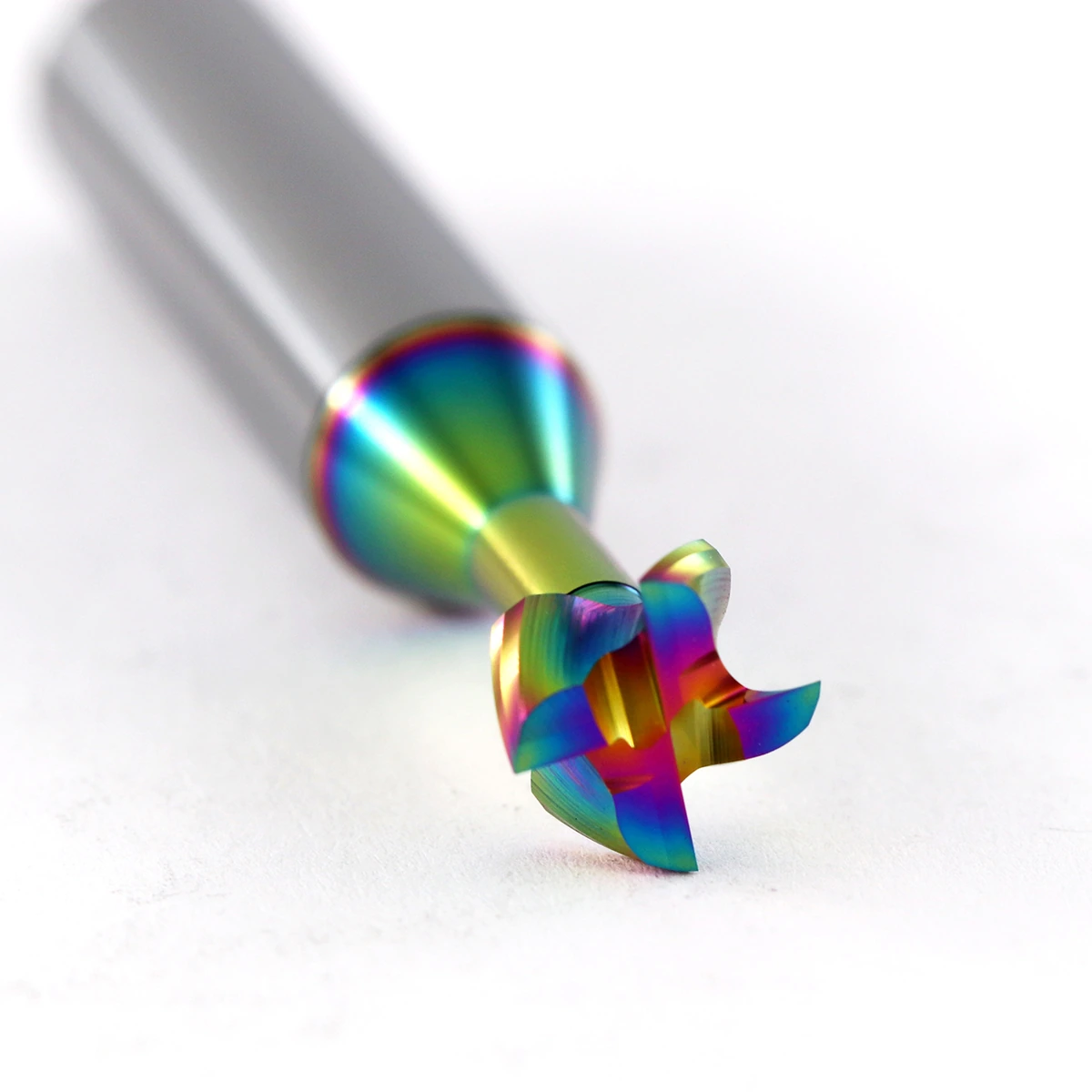

T-Slot Cutter (Rainbow-Alu)
Designed for accurate T-slot and undercut machining with reliable side-cutting performance.
Product Advantages
01Accurate slot width
02Strong neck design
03Stable side cutting
04Good chip evacuation
Technical Information
| Item | Specification |
|---|---|
| Tool Material | Premium micro-grain solid carbide |
| Geometry | T-slot neck and side-cutting geometry |
| Coating | Rainbow coating optimized for non-ferrous metals |
| Recommended Materials | Aluminum, aluminum alloys, copper, brass and other non-ferrous metals |
| Typical Operations | T-slots, keyways, undercuts and fixture-slot machining |
Published Specifications & Cutting Data
The following values are based on the specifications currently published for this product. Please confirm stock dimensions and machining conditions before ordering.
Product Information
| Item | Description |
|---|---|
| Product Name | Colorful Coated T-Slot End Mill for Aluminum |
| Tool Material | Solid Carbide |
| Number of Flutes | 4 Flutes |
| Cutter Type | T-Slot Cutter / Undercutting End Mill |
| Coating | Colorful Low-Friction Coating |
| Cutting Geometry | Aluminum-Specific Geometry |
| Shank Type | Straight Shank |
| Cutting Direction | Right-Hand Cutting |
| Manufacturing Method | Precision Ground |
Reference Specifications
| Cutter Dia. D | Available Blade Thickness L | Shank Dia. D2 | Overall Length L2 | Flutes |
|---|---|---|---|---|
| 3 | 0.5 / 1.0 / 1.5 / 2.0 | 4 | 50 | 4 |
| 4 | 0.5 / 1.0 / 1.5 / 2.0 | 4 | 50 | 4 |
| 6 | 0.5 / 1.0 / 1.5 / 2.0 / 2.5 / 3.0 | 6 | 50 | 4 |
| 8 | 0.5 / 1.0 / 1.5 / 2.0 / 2.5 / 3.0 | 8 | 50 | 4 |
| 10 | 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0 / 5.0 | 10 | 60 | 4 |
| 12 | 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0 / 5.0 | 12 | 60 | 4 |
| 14 | 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0 / 5.0 | 14 | 75 | 4 |
| 16 | 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 4.0 / 5.0 | 16 | 75 | 4 |
Reference Dimensional Tolerance
| Cutter Diameter | Diameter Tolerance |
|---|---|
| D ≤ 12 mm | 0 / −0.015 mm |
| D > 12 mm | 0 / −0.020 mm |
Reference Cutting Conditions
| Workpiece Material | Material Condition | Recommended Vc |
|---|---|---|
| Aluminum alloy | General-purpose grade | 150–250 m/min |
| High-silicon aluminum | Silicon content below 12% | 100–180 m/min |
| Cast aluminum | General casting grade | 120–200 m/min |
| Copper | General-purpose grade | 80–150 m/min |
| Brass | Free-cutting grade | 100–180 m/min |
| Magnesium alloy | General-purpose grade | 150–250 m/min |
Customization & OEM Service
Custom cutting diameters, flute lengths, overall lengths, shank diameters, tool geometry, coatings, laser marking and private-label packaging are available according to your machining requirements.
