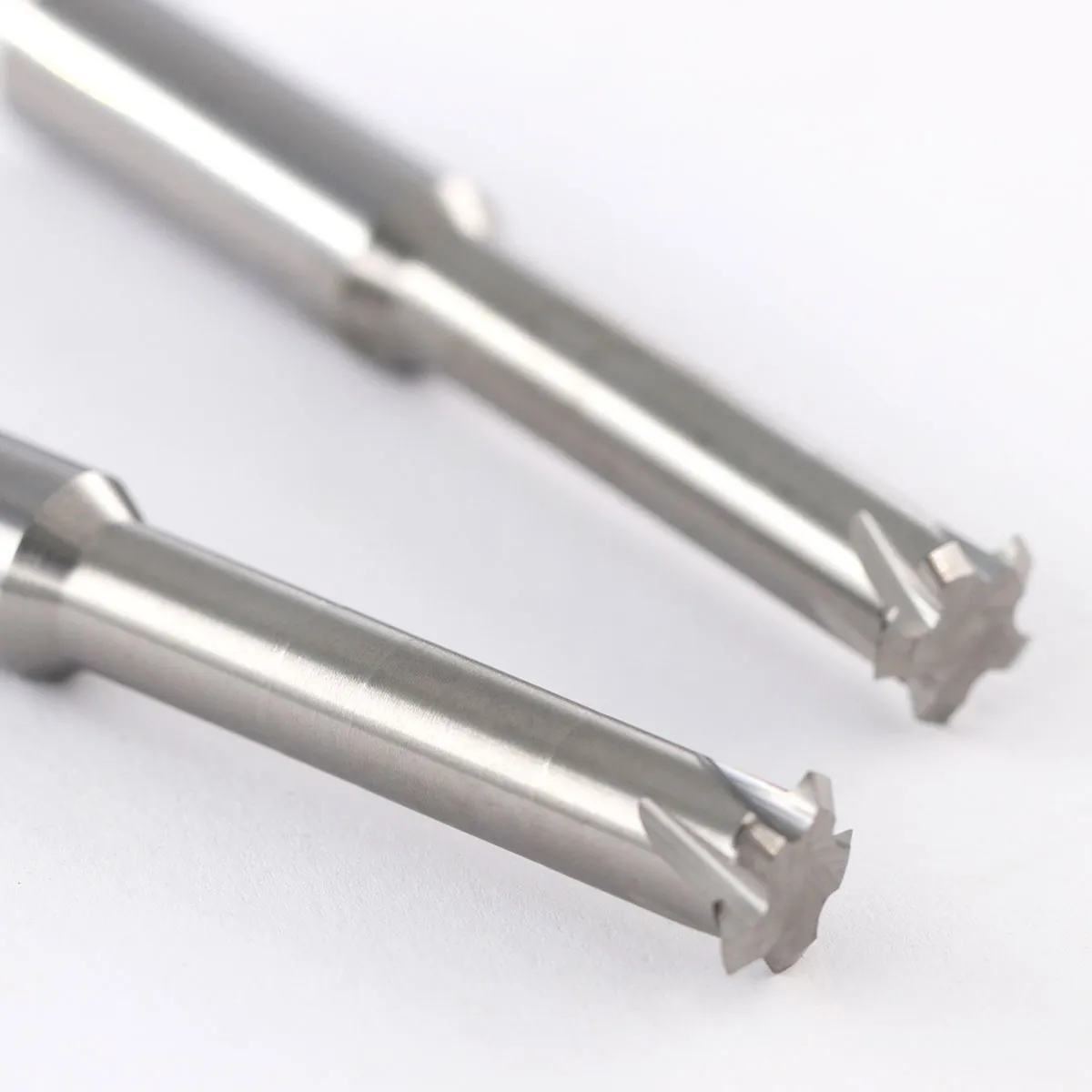

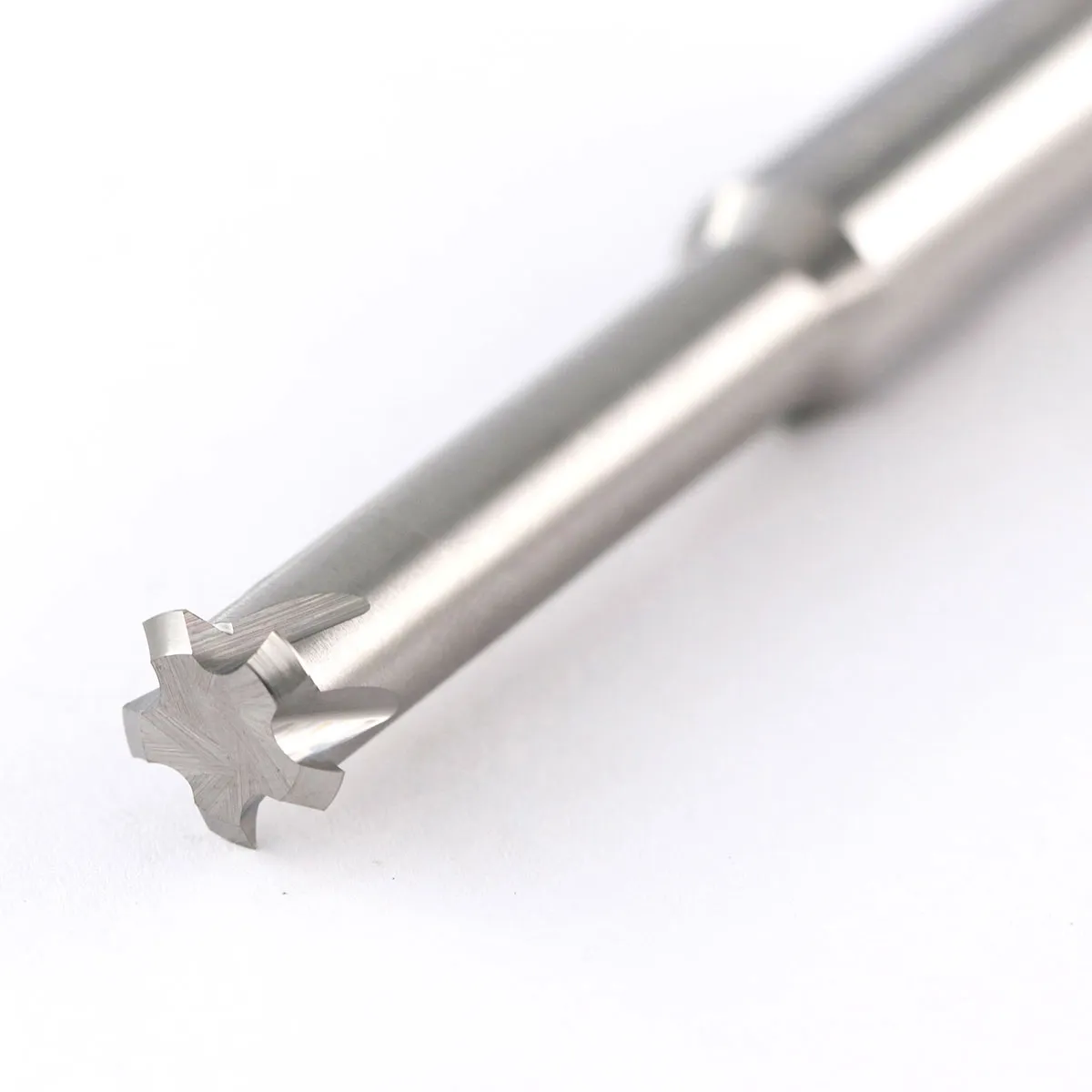

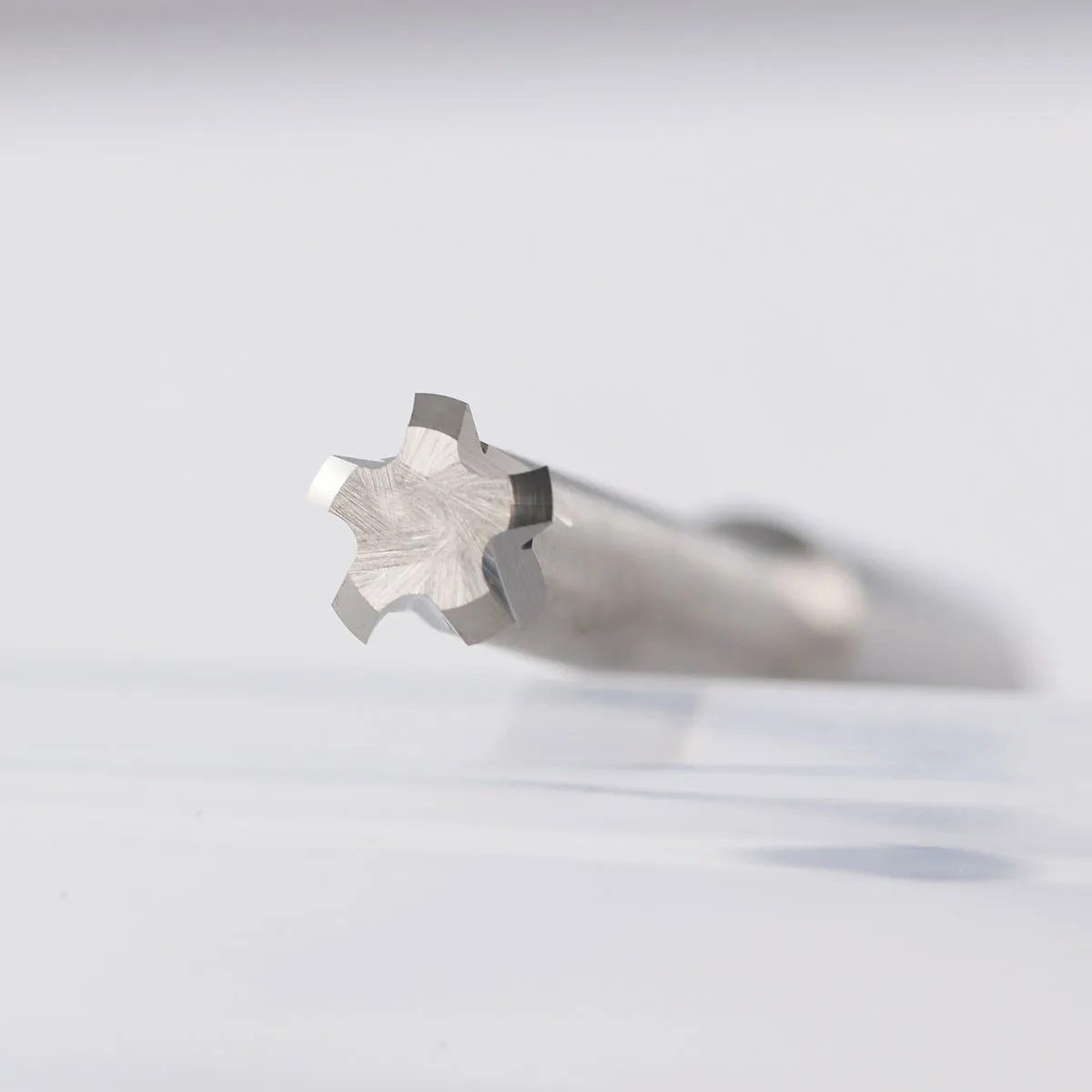

Single-Form Thread Mill (Uncoated)
Designed for accurate, repeatable thread production with low cutting pressure and excellent process control.
Product Advantages
01Accurate thread profiles
02Low cutting pressure
03Suitable for blind and through holes
04Flexible thread-diameter capability
Technical Information
| Item | Specification |
|---|---|
| Tool Material | Premium micro-grain solid carbide |
| Geometry | Single-form thread-milling geometry |
| Coating | Uncoated, precision-polished cutting edges |
| Recommended Materials | Steel, stainless steel, aluminum, cast iron and other engineering materials |
| Typical Operations | Internal and external thread milling, blind holes and through holes |
Published Specifications & Cutting Data
The following values are based on the specifications currently published for this product. Please confirm stock dimensions and machining conditions before ordering.
Reference Specifications
| Thread Size | Pitch P | Cutter Dia. D1 | Neck/Cutting Length L1 | Shank Dia. D2 | Overall Length L2 |
|---|---|---|---|---|---|
| M1.4 | 0.30 | 1.05 | 4.0 | 4 | 50 |
| M1.6 | 0.35 | 1.20 | 5.0 | 4 | 50 |
| M1.8–M2.0 | 0.35 | 1.40 | 5.6 | 4 | 50 |
| M2 | 0.40 | 1.54 | 6.0 | 4 | 50 |
| M2.5 | 0.45 | 1.96 | 6.5 | 4 | 50 |
| M3 | 0.50 | 2.40 | 8.0 | 4 | 50 |
| M8 | 0.50 | 6.00 | 20.0 | 6 | 50 |
| M3.5 | 0.60 | 2.75 | 10.0 | 4 | 50 |
| M4 | 0.70 | 3.15 | 10.0 | 4 | 50 |
| M4.5 | 0.75 | 3.50 | 12.0 | 4 | 50 |
| M8 | 0.75 | 6.00 | 20.0 | 6 | 50 |
| M5 | 0.80 | 4.00 | 12.0 | 4 | 50 |
| M6 | 1.00 | 4.80 | 15.0 | 6 | 50 |
| M8 | 1.25 | 6.00 | 20.0 | 6 | 50 |
| M10 | 1.50 | 8.00 | 25.0 | 8 | 60 |
| M14 | 1.50 | 12.00 | 30.0 | 12 | 75 |
| M12 | 1.75 | 10.00 | 30.0 | 10 | 75 |
| M14 | 2.00 | 10.00 | 36.0 | 10 | 75 |
| M16 | 2.00 | 12.00 | 45.0 | 12 | 75 |
| M18 | 2.50 | 14.00 | 48.0 | 14 | 90 |
| M24 | 3.00 | 14.00 | 48.0 | 14 | 90 |
| M30 | 3.50 | 16.00 | 50.0 | 16 | 90 |
Customization & OEM Service
Custom cutting diameters, flute lengths, overall lengths, shank diameters, tool geometry, coatings, laser marking and private-label packaging are available according to your machining requirements.
Get a Quote for Your Cutting Tools
Contact PENGFU TOOLS for product selection, machining recommendations, customized solutions and a competitive quotation.
