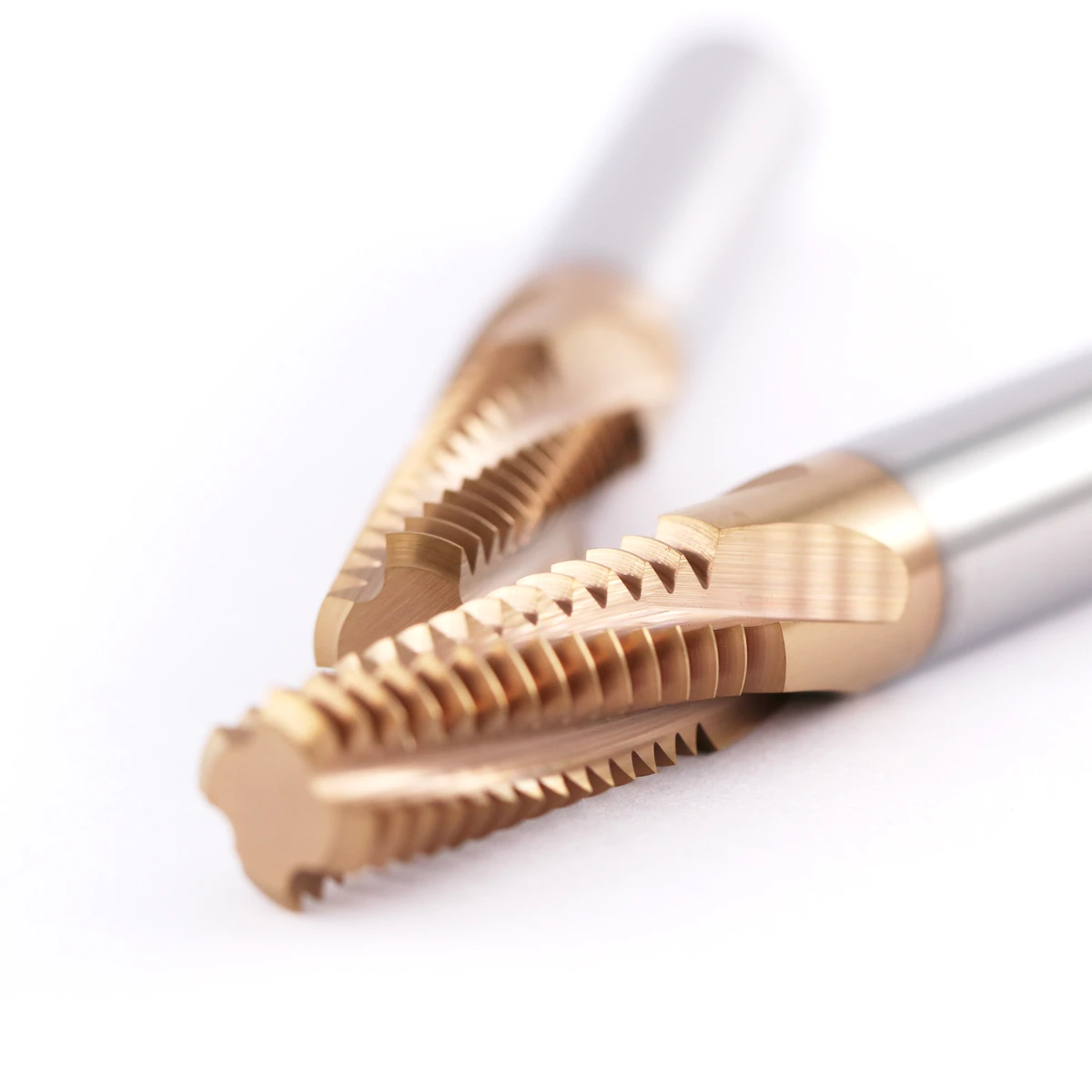

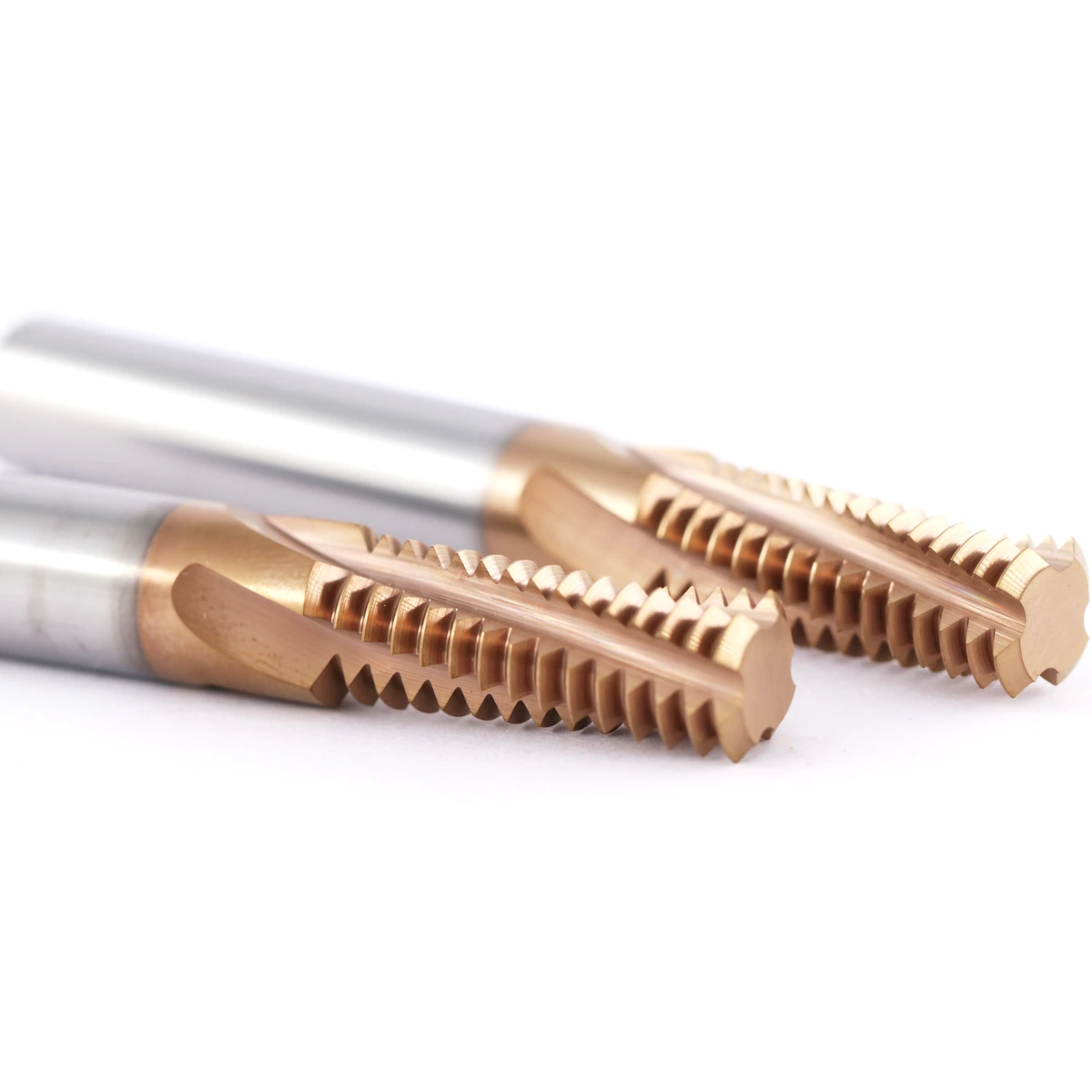

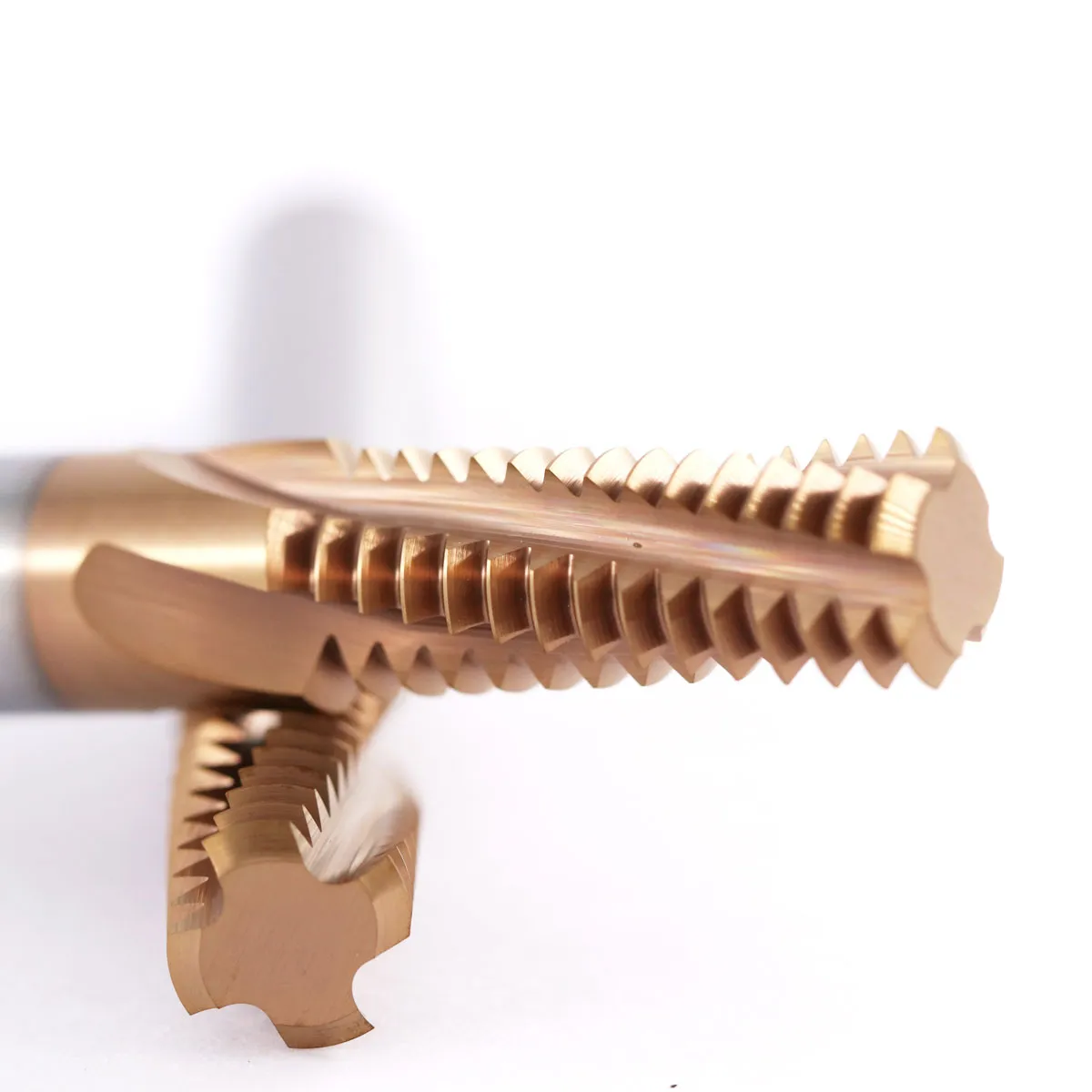

Full-Profile Thread Mill (TiSiN-Steel)
Designed for accurate, repeatable thread production with low cutting pressure and excellent process control.
Product Advantages
01Accurate thread profiles
02Low cutting pressure
03Suitable for blind and through holes
04Complete thread profile in one operation
Technical Information
| Item | Specification |
|---|---|
| Tool Material | Premium micro-grain solid carbide |
| Geometry | Full-profile thread-milling geometry |
| Coating | TiSiN wear- and heat-resistant coating |
| Recommended Materials | Carbon steel, alloy steel, tool steel and mold steel |
| Typical Operations | Internal and external thread milling, blind holes and through holes |
Published Specifications & Cutting Data
The following values are based on the specifications currently published for this product. Please confirm stock dimensions and machining conditions before ordering.
Product Specifications
| Thread Range | Pitch | Cutter Dia. D | Cutting Length L2 | Shank Dia. D2 | Overall Length L | Flutes |
|---|---|---|---|---|---|---|
| M3 | P0.5 | 2.3 | 6 | 4 | 50 | 3 |
| M6 | P0.5 | 4.0 | 10 | 4 | 50 | 3 |
| M8–M12 | P0.5 | 6.0 | 13 | 6 | 60 | 3 |
| M3.5 | P0.6 | 2.7 | 7 | 4 | 50 | 3 |
| M4 | P0.7 | 3.0 | 8 | 4 | 50 | 3 |
| M4.5 | P0.75 | 3.4 | 9 | 4 | 50 | 3 |
| M6 | P0.75 | 4.8 | 12 | 6 | 60 | 3 |
| M8 | P0.75 | 6.0 | 16 | 6 | 60 | 3 |
| M10–M12 | P0.75 | 8.0 | 20 | 8 | 60 | 3 |
| M5 | P0.8 | 4.0 | 10 | 4 | 50 | 3 |
| M6 | P1.0 | 4.8 | 12 | 6 | 60 | 3 |
| M8 | P1.0 | 6.0 | 16 | 6 | 60 | 3 |
| M10 | P1.0 | 8.0 | 20 | 8 | 60 | 3 |
| M12–M14 | P1.0 | 10.0 | 22 | 10 | 75 | 4 |
| M16 | P1.0 | 12.0 | 30 | 12 | 75 | 4 |
| M20–M48 | P1.0 | 16.0 | 30 | 16 | 90 | 4 |
| M8 | P1.25 | 6.0 | 16 | 6 | 60 | 3 |
| M10 | P1.25 | 8.0 | 20 | 8 | 60 | 3 |
| M12–M14 | P1.25 | 10.0 | 25 | 10 | 75 | 4 |
| M16 | P1.25 | 12.0 | 30 | 12 | 75 | 4 |
| M10 | P1.5 | 8.0 | 20 | 8 | 60 | 3 |
| M12–M20 | P1.5 | 10.0 | 28 | 10 | 75 | 4 |
| M14–M24 | P1.5 | 12.0 | 28 | 12 | 75 | 4 |
| M20–M48 | P1.5 | 16.0 | 30 | 16 | 90 | 4 |
| M12 | P1.75 | 9.8 | 30 | 10 | 75 | 4 |
| M14–M16 | P2.0 | 12.0 | 30 | 12 | 75 | 4 |
| M20–M80 | P2.0 | 16.0 | 40 | 16 | 100 | 4 |
| M18–M20 | P2.5 | 14.0 | 36 | 14 | 100 | 4 |
| M20–M80 | P2.5 | 16.0 | 40 | 16 | 100 | 4 |
| M24 and Above | P3.0 | 16.0 | 42 | 16 | 100 | 4 |
