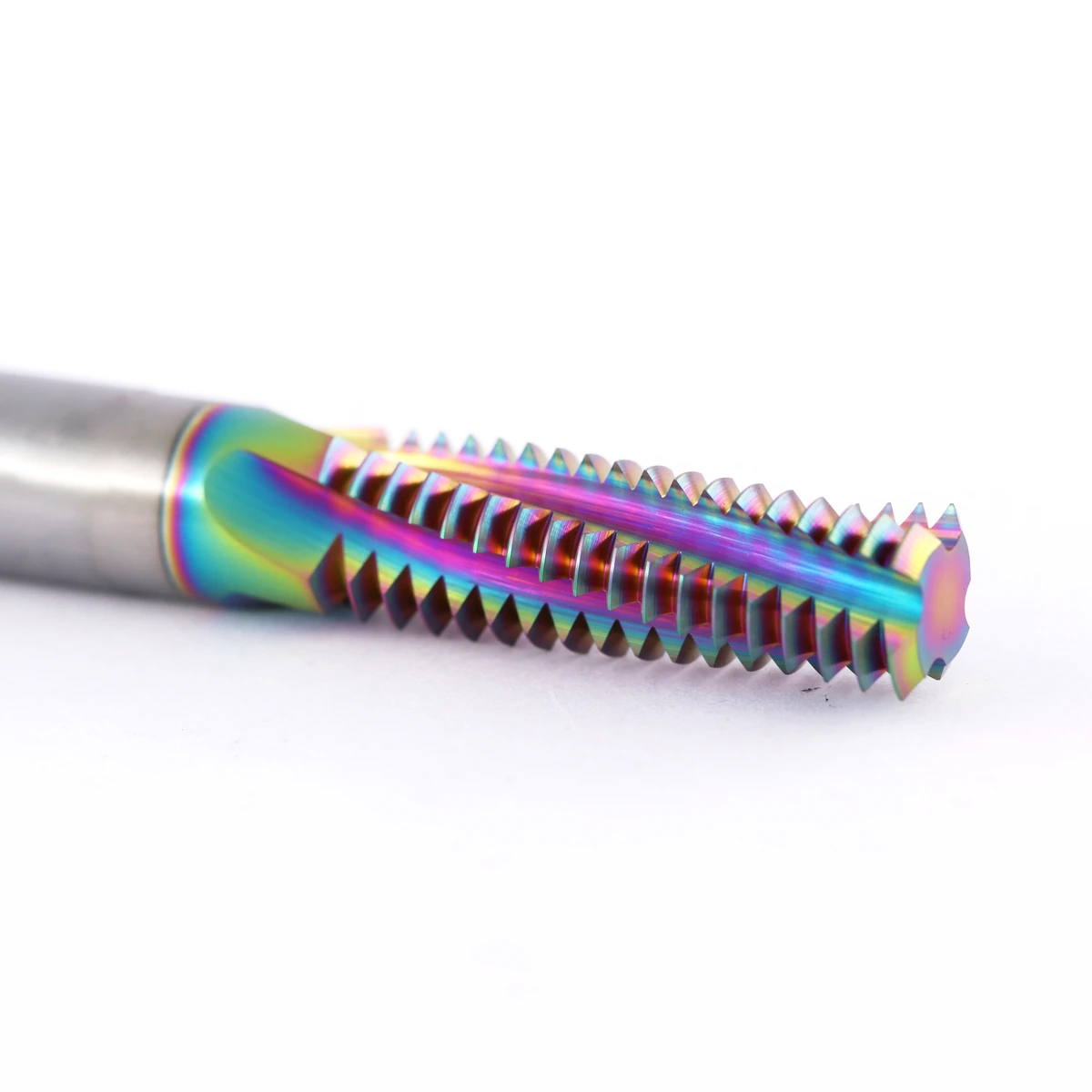

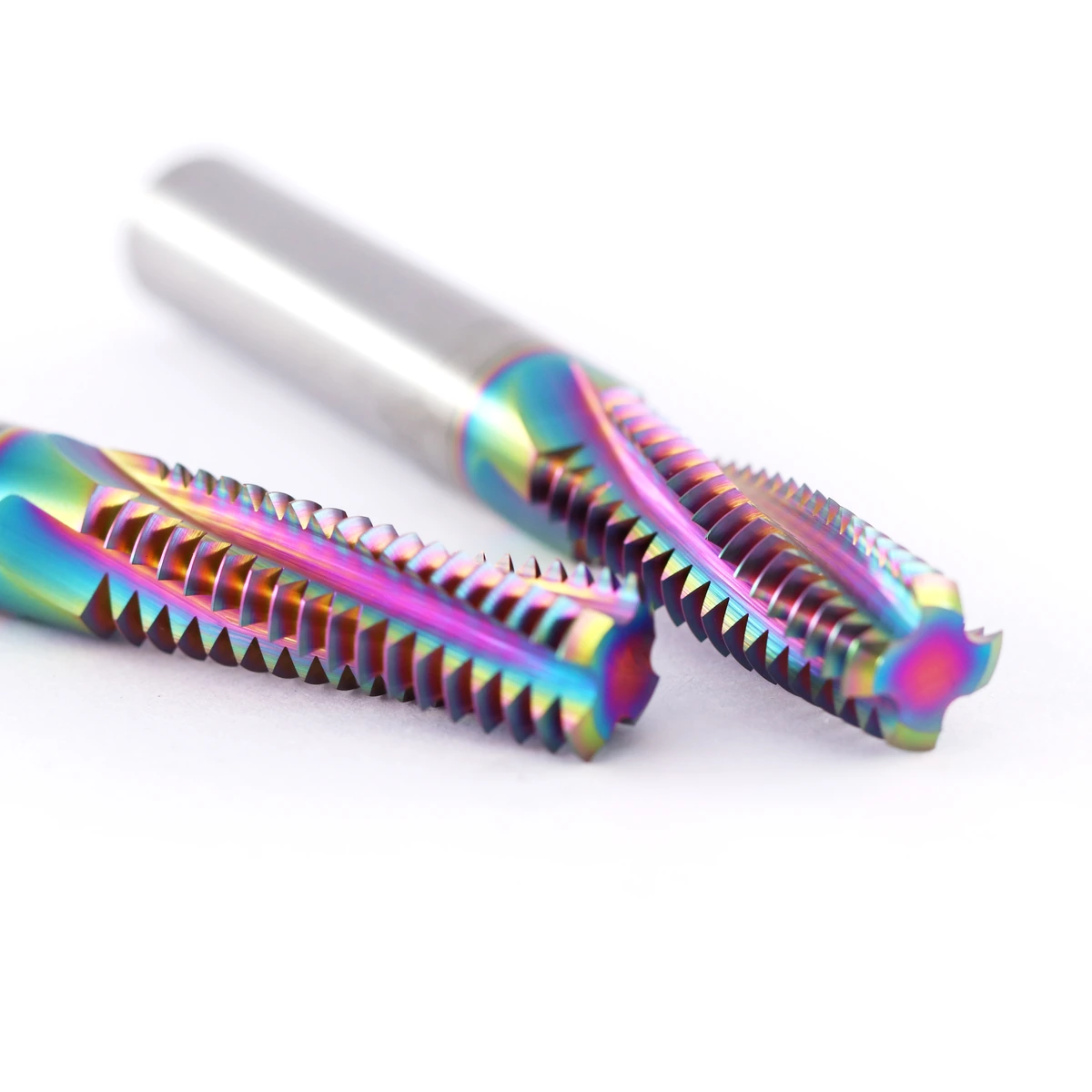

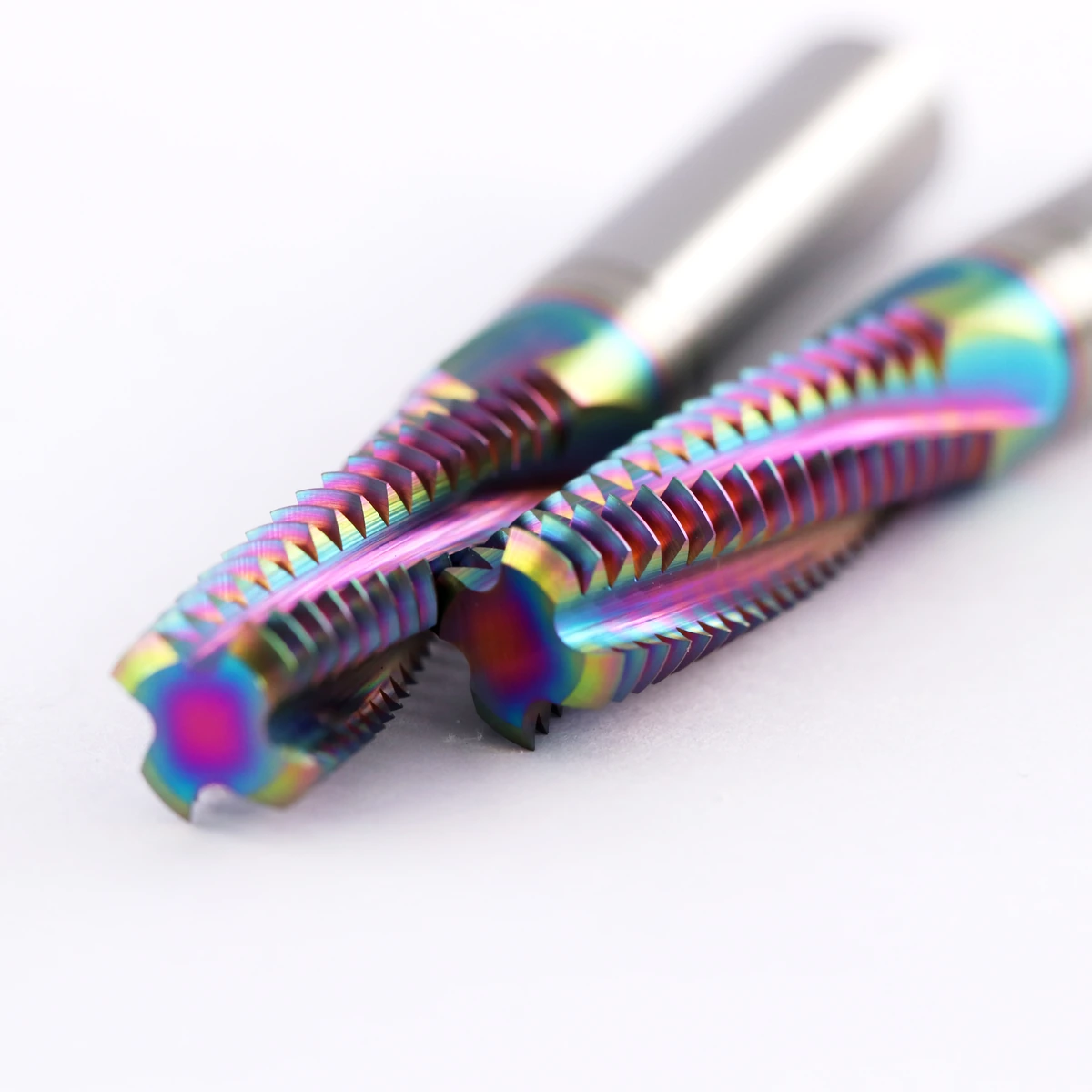

Full-Profile Thread Mill (Rainbow-Alu)
Designed for accurate, repeatable thread production with low cutting pressure and excellent process control.
Product Advantages
01Accurate thread profiles
02Low cutting pressure
03Suitable for blind and through holes
04Complete thread profile in one operation
Technical Information
| Item | Specification |
|---|---|
| Tool Material | Premium micro-grain solid carbide |
| Geometry | Full-profile thread-milling geometry |
| Coating | Rainbow coating optimized for non-ferrous metals |
| Recommended Materials | Aluminum, aluminum alloys, copper, brass and other non-ferrous metals |
| Typical Operations | Internal and external thread milling, blind holes and through holes |
Published Specifications & Cutting Data
The following values are based on the specifications currently published for this product. Please confirm stock dimensions and machining conditions before ordering.
Reference Specifications
| Thread Size | Pitch | Cutter Diameter | Shank Diameter | Overall Length |
|---|---|---|---|---|
| M3 | 0.5 mm | Reference | 4 mm | 50 mm |
| M4 | 0.7 mm | Reference | 4 mm | 50 mm |
| M5 | 0.8 mm | Reference | 4–6 mm | 50 mm |
| M6 | 1.0 mm | Reference | 6 mm | 50 mm |
| M8 | 1.25 mm | Reference | 6–8 mm | 60 mm |
| M10 | 1.5 mm | Reference | 8 mm | 60 mm |
| M12 | 1.75 mm | Reference | 10 mm | 75 mm |
| M14 | 2.0 mm | Reference | 10–12 mm | 75 mm |
| M16 | 2.0 mm | Reference | 12 mm | 75–100 mm |
| M20 | 2.5 mm | Reference | 14–16 mm | 100 mm |
| M24 | 3.0 mm | Reference | 16 mm | 100 mm |
Customization & OEM Service
Custom cutting diameters, flute lengths, overall lengths, shank diameters, tool geometry, coatings, laser marking and private-label packaging are available according to your machining requirements.
