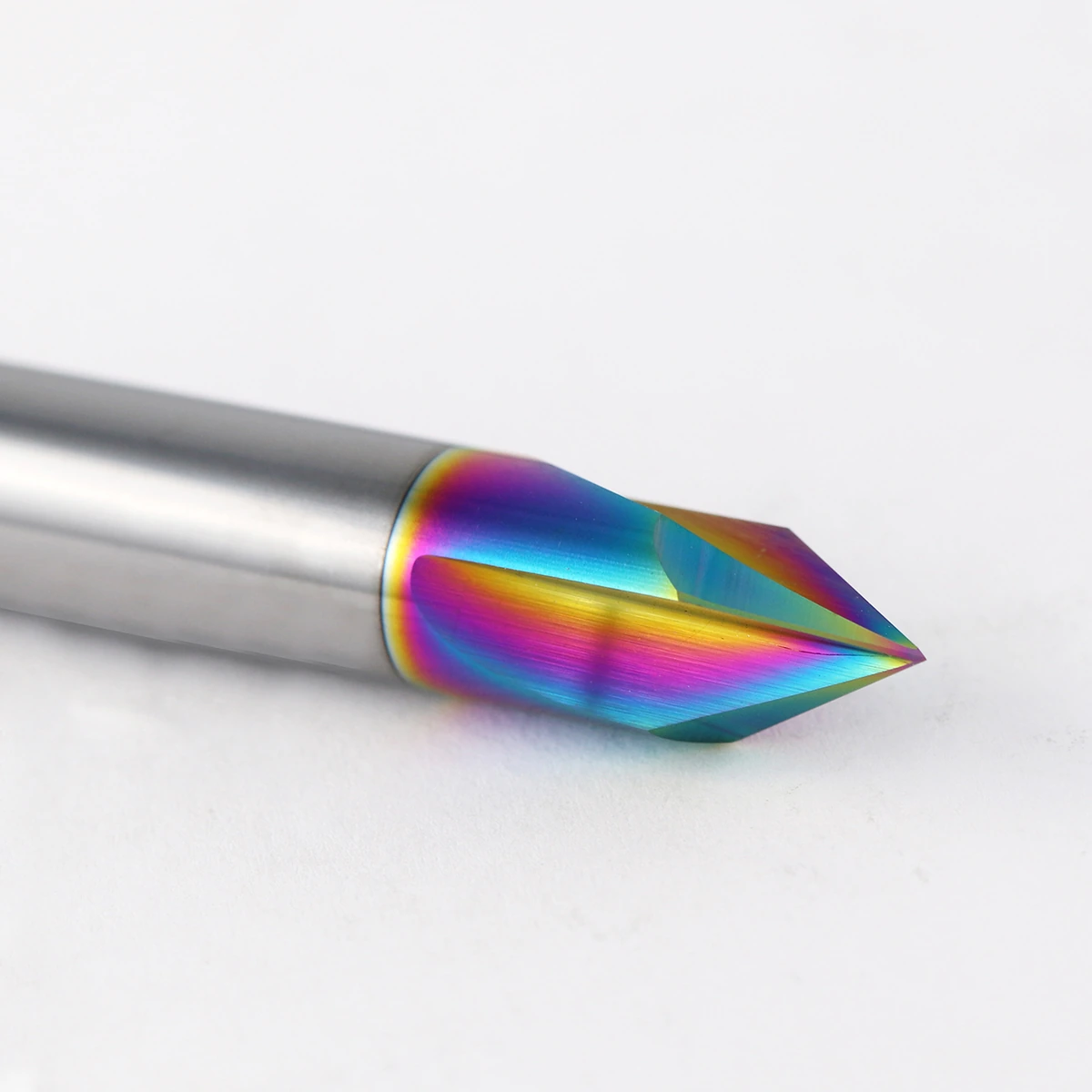

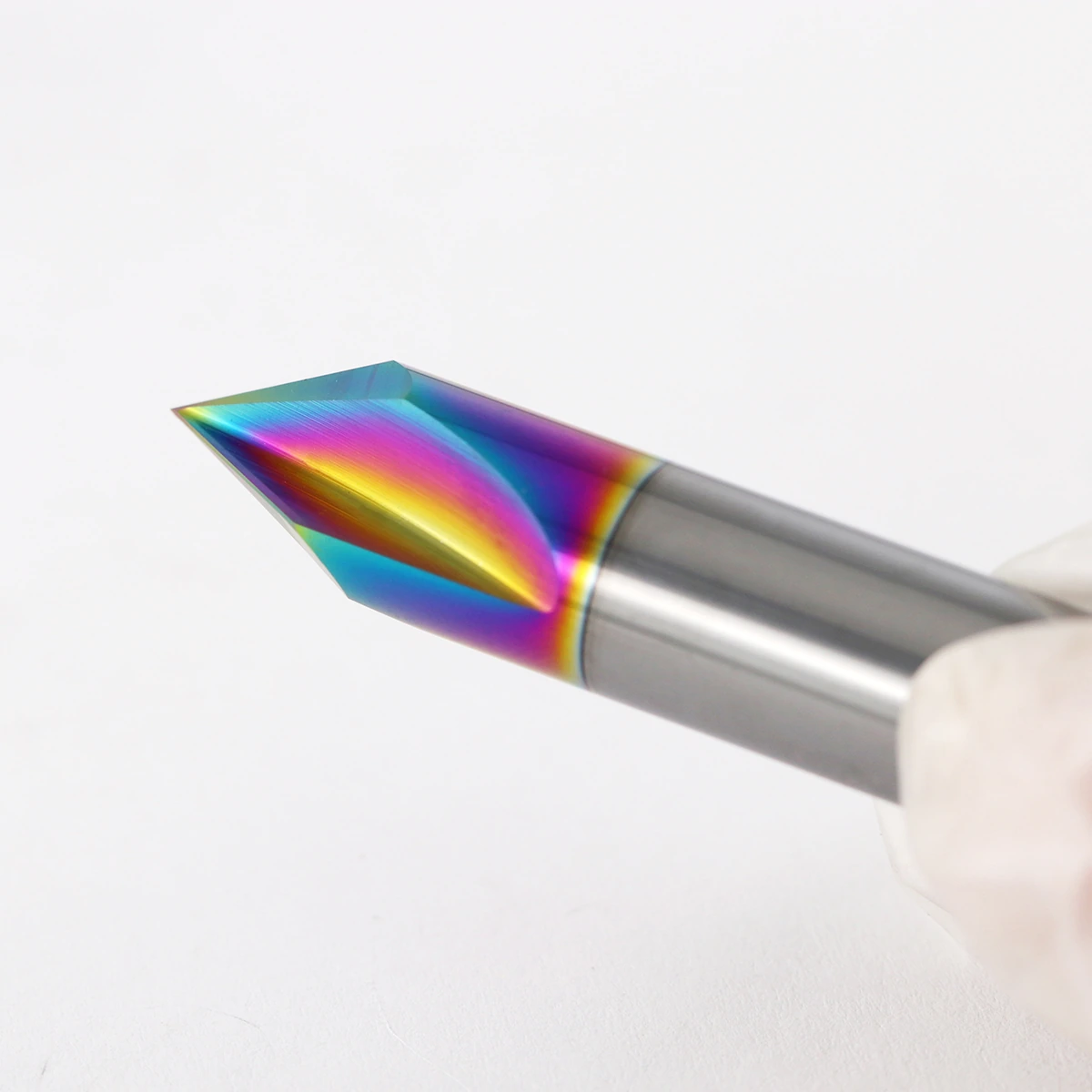

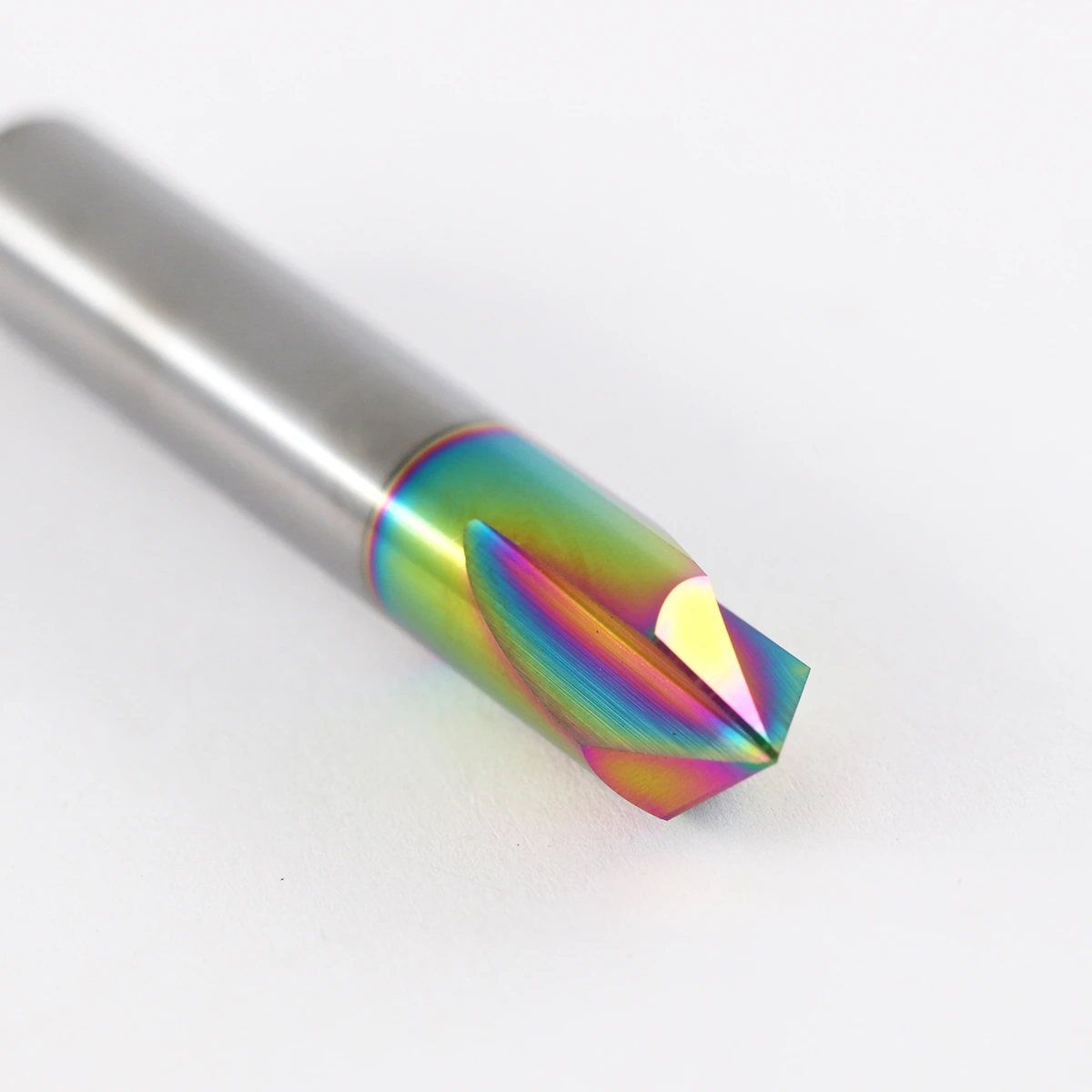

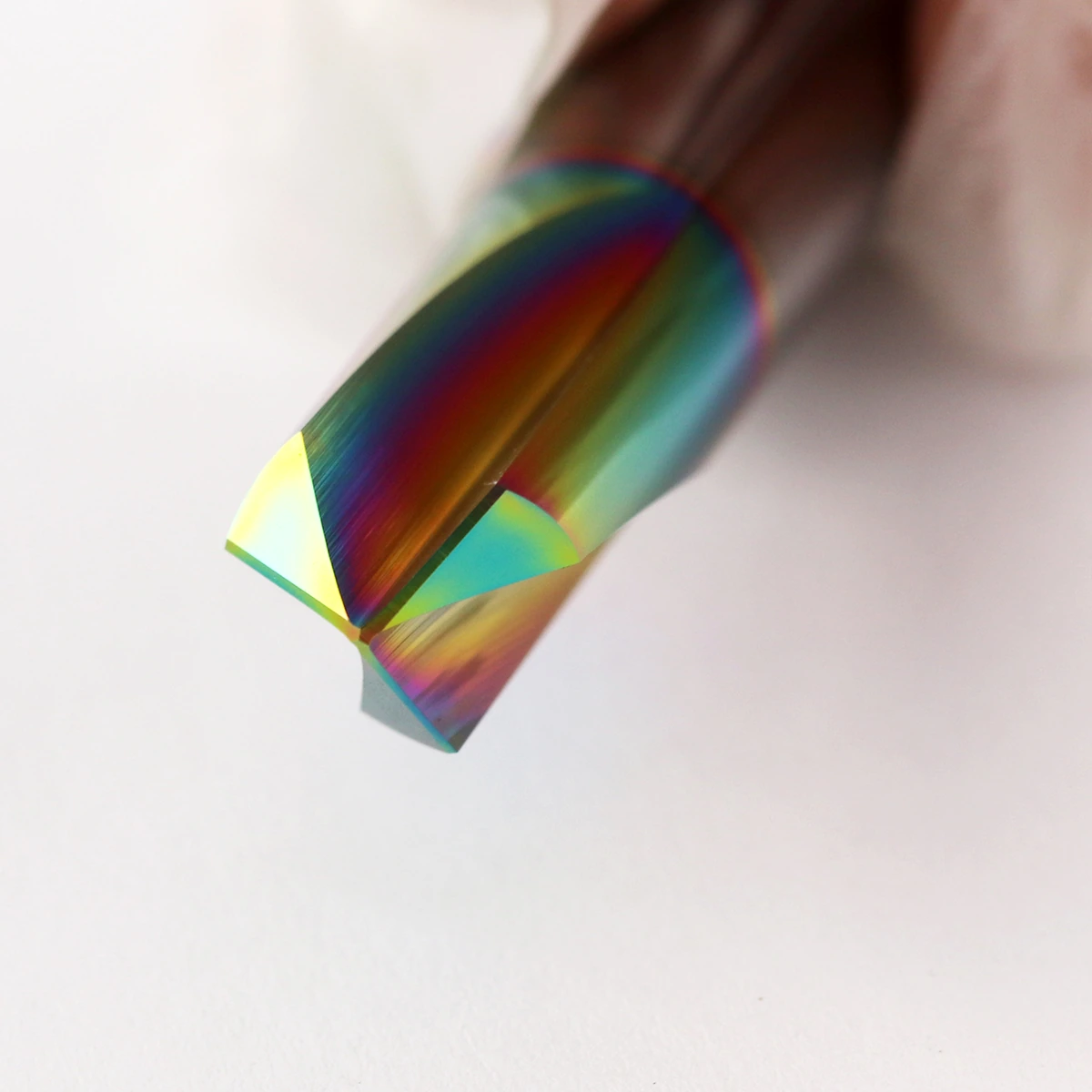

3-Flute Chamfer End Mill for Aluminum
A sharp three-flute carbide cutter for clean chamfers and burr-free aluminum edges.
Product Advantages
01Sharp aluminum cutting edges
02Three-flute machining efficiency
03Reduced built-up edge
04Clean, consistent chamfers
Technical Information
| Item | Specification |
|---|---|
| Tool Material | Premium micro-grain solid carbide |
| Geometry | 3-flute chamfer cutting geometry |
| Coating | Coating options available by application |
| Recommended Materials | Aluminum, aluminum alloys, copper, brass and other non-ferrous metals |
| Typical Operations | Chamfering, countersinking, deburring and edge preparation |
Published Specifications & Cutting Data
The following values are based on the specifications currently published for this product. Please confirm stock dimensions and machining conditions before ordering.
Reference Specifications
| Cutter Dia. D | Included Angle | Shank Dia. D2 | Overall Length L2 | Number of Flutes |
|---|---|---|---|---|
| 2 | 60° | 4 | 50 | 3 |
| 2 | 120° | 4 | 50 | 3 |
| 3 | 60° | 4 | 50 | 3 |
| 3 | 90° | 3 | 50 | 3 |
| 3 | 120° | 3 | 50 | 3 |
| 3 | 120° | 4 | 50 | 3 |
| 4 | 60° | 4 | 50 | 3 |
| 4 | 90° | 4 | 50 | 3 |
| 4 | 120° | 4 | 50 | 3 |
| 5 | 90° | 5 | 50 | 3 |
| 6 | 60° | 6 | 50 | 3 |
| 6 | 90° | 6 | 50 | 3 |
| 8 | 90° | 8 | 60 | 3 |
| 10 | 60° | 10 | 75 | 3 |
| 10 | 90° | 10 | 75 | 3 |
Reference Cutting Parameters
| Workpiece Material | Recommended Cutting Speed Vc |
|---|---|
| Aluminum alloy, Si ≤ 12% | 150–300 m/min |
| Cast aluminum, Si > 12% | 100–220 m/min |
| Copper | 100–220 m/min |
| Brass | 120–250 m/min |
Customization & OEM Service
Custom cutting diameters, flute lengths, overall lengths, shank diameters, tool geometry, coatings, laser marking and private-label packaging are available according to your machining requirements.
